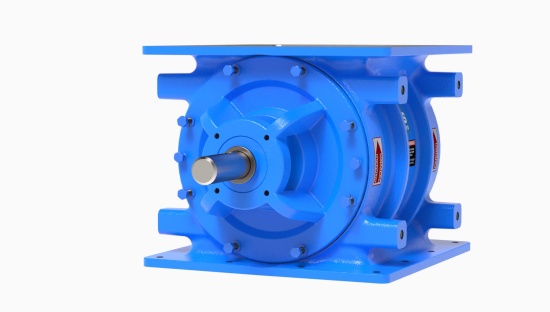

Features & Benefits:

  • Available in 11 heights, from 10"H to 44"H; and 11 square-flange sizes from 6" to 26".
  • Cast-iron valve housing with superior metallurgy provides strength and durability for a longer overall lifespan.
  • CNC-machined components and housing provide precision tolerances; eliminates axial shaft movement, extends maintenance cycles.
  • Outboard bearing design protects bearings in high-temperature and high-PSIG applications; removes bearings from direct path of damaging contaminants.
  • Easily manages pressure differentials up to 15 PSIG; with super-duty series up to 22 PSIG.
  • Excellent performance in high-temperature applications up to 750°F.
  • 8-vane rotor with beveled tips and sides.

Options:

  • 304, 304L, 316, 316L, or 2205 cast stainless steel valve housing.
  • No. 4 finish on internal product contact surfaces of housing, and all rotor surfaces.
  • Interior coatings: hard chrome, tungsten.
  • Rotor types: closed-end, metering, shallow-pocket, adjustable-tip, and Lectrofluor®-coated.
  • Adjustable rotor tip types: Polyurethane, mild steel, AR400 steel, stainless steel, and bronze.
  • Shaft seal types: ACST-4™ glandless Lectrofluor® shaft seal, and packing gland.
  • Valve housing vent ports.
  • Shaft seal and rotor pocket air purge.
  • 6-vane, 10-vane, or 12-vane rotor.
  • Custom drive packages.
  • Application-specific accessories: blow-through adapter, shear plate deflector, surge hopper, motion speed switch assembly.


Rotary Valve Capacity (Cubic Feet/Hr.)

Valve Size

6

6

30

48

60

72

84

96

108

120

132

8

12

60

96

120

144

168

192

216

240

264

10

24

120

192

240

288

336

384

432

480

528

12

45

225

360

450

540

630

720

810

900

990

14

66

330

528

660

792

924

1056

1188

1320

1452

16

84

420

672

840

1008

1176

1344

1512

1680

1848

16T

120

600

960

1200

1440

1680

1920

2160

2400

2640

18

162

810

1296

1620

1944

2268

2592

2916

3240

3564

22

276

1380

2208

2760

3312

3864

4416

4968

5520

6072

24

384

1920

3072

3840

4608

5376

6144

6912

7680

8448

26

540

2700

4320

5400

6480

7560

8640

9720

10800

11880



1

5

8

10

12

14

16

18

20

22



Rotor Speed (RPM)

Customizations: CI Series

Rotors

Adjustable Polyurethane Tip Rotor Adjustable Polyurethane Tip Rotor Adjustable Rotor Adjustable Rotor Bolt-On Serrated Tips Rotor Bolt-On Serrated Tips Rotor Closed End Rotor Closed End Rotor Flex Tip Style Rotor Flex Tip Style Rotor Helical Metering Rotor Helical Metering Rotor Helical Rotor Helical Rotor Metering Rotor Metering Rotor Open End Rotor Open End Rotor Radius Pocket Rotor Radius Pocket Rotor Reduced Volume Rotor Reduced Volume Rotor Staggered Pocket Rotor Staggered Pocket Rotor

Kits

Combination Shaft Seal and Rotor Pocket Air Purge Kit Combination Shaft Seal and Rotor Pocket Air Purge Kit Rotor Pocket Air Purge Kit Rotor Pocket Air Purge Kit Shaft Guard Kit Shaft Guard Kit Shaft Seal Air Purge Kit Shaft Seal Air Purge Kit Zero Speed Switch Kit Zero Speed Switch Kit

Accessories

Adjustable Inlet Shear Protector: Spool Style for Square Valves Adjustable Inlet Shear Protector: Spool Style for Square Valves Discharge Blow-Through Adapter for Square Valves Discharge Blow-Through Adapter for Square Valves Discharge Finger Guard for Square Valves Discharge Finger Guard for Square Valves Inlet Shear Protector: Half-Moon Style for Square Valves Inlet Shear Protector: Half-Moon Style for Square Valves Inlet Shear Protector: Spool Style for Square Valves Inlet Shear Protector: Spool Style for Square Valves Inlet Shear Protector: Spool Style for Square Valves, Vented Inlet Shear Protector: Spool Style for Square Valves, Vented Inlet Shunt with Tip Cleaner for Square Valves Inlet Shunt with Tip Cleaner for Square Valves Maintenance Slide Gate for Square Valves (Air Operated) Maintenance Slide Gate for Square Valves (Air Operated) Maintenance Slide Gate for Square Valves (Manually Operated) Maintenance Slide Gate for Square Valves (Manually Operated) Vent Box for Square Valves Vent Box for Square Valves
