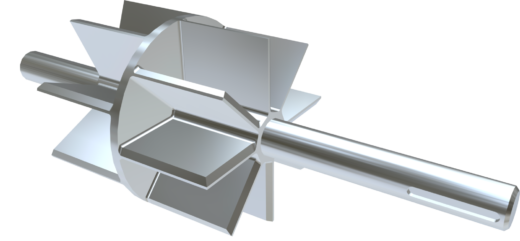

Staggered Pocket Rotor
Continuous and uniform flow with 16 offset pockets to provide a more accurate rate of material flow.
EXPLORE IN THE 3D VIEWERInformation:
- 16 offset pockets ensure a continuous and uniform flow rate to the conveying line
- More accurate rate of material flow
- Options: Open end rotor or closed end shrouds
Materials of construction:
- mild steel
- stainless steel
