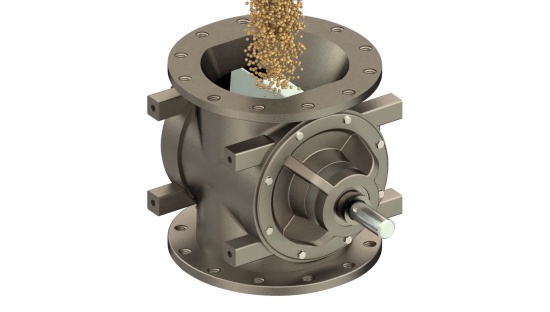

Features & Benefits:

  • Available in 7 heights, from 7 3/8"H to 23 1/2"H; and 7 flange diameters from 4" to 16".
  • Valve housing cast in North America; ensures superior strength and solidification of housing's metallurgy.
  • CNC-machined components and housing provide precision tolerances; eliminates axial shaft movement, extends maintenance cycles.
  • Outboard bearing design protects bearings in high-temperature and high-PSIG applications; removes bearings from direct path of damaging contaminants.
  • Easily manages pressure differentials up to 15 PSIG; with super-duty series up to 22 PSIG.
  • Excellent performance in high-temperature applications up to 750°F.
  • Cast iron housing.
  • 8-vane rotor with beveled tips and sides.
What to do if your valve becomes uncompliant (Because it will)

Options:

  • 304 or 316 cast stainless steel valve housing.
  • RotorRail™ feature provides tool-less access to rotor and internal surfaces; speeds cleaning and inspection; ensures fast, accurate rotor and endplate re-alignment.
  • No. 4 finish on internal product contact surfaces of housing, and all rotor surfaces.
  • Interior coatings: hard chrome, tungsten, nickel, and epoxy.
  • Rotor types: closed-end, metering, shallow-pocket, adjustable-tip, and Teflon®-coated.
  • Adjustable rotor tip types: EPDM rubber, polyurethane, AR400, stainless steel, and bronze.
  • Shaft seal types: ACST-4™ glandless Teflon® shaft seal, and packing gland.
  • Valve housing vent ports.
  • Shaft seal and rotor pocket air purge.
  • 6-vane, 10-vane, or 12-vane rotor.
  • Custom drive packages.
  • Application-specific accessories: blow-through adapter, shear plate deflector, surge hopper, motion speed switch assembly.
Rotary Valve Capacity (Cubic Feet/Hr.)
Valve Size 4 2 8 12 15 18 21 24 27 30 33
6 6 30 48 60 72 84 96 108 120 132
8 12 60 96 120 144 168 192 216 240 264
10 24 120 192 240 288 336 384 432 480 528
12 45 225 360 450 540 630 720 810 900 990
14 66 330 528 660 792 924 1056 1188 1320 1452
16 84 420 672 840 1008 1176 1344 1512 1680 1848
1 5 8 10 12 14 16 18 20 22
Rotor Speed (RPM)

Customizations: MD Series

Rotors

Adjustable Polyurethane Tip Rotor Adjustable Polyurethane Tip Rotor Adjustable Rotor Adjustable Rotor Bolt-On Serrated Tips Rotor Bolt-On Serrated Tips Rotor Closed End Rotor Closed End Rotor Flex Tip Style Rotor Flex Tip Style Rotor Helical Metering Rotor Helical Metering Rotor Helical Rotor Helical Rotor Metering Rotor Metering Rotor Open End Rotor Open End Rotor Radius Pocket Rotor Radius Pocket Rotor Reduced Volume Rotor Reduced Volume Rotor Staggered Pocket Rotor Staggered Pocket Rotor

Kits

Combination Shaft Seal and Rotor Pocket Air Purge Kit Combination Shaft Seal and Rotor Pocket Air Purge Kit Rotor Pocket Air Purge Kit Rotor Pocket Air Purge Kit Shaft Guard Kit Shaft Guard Kit Shaft Seal Air Purge Kit Shaft Seal Air Purge Kit Zero Speed Switch Kit Zero Speed Switch Kit

Accessories

Discharge Blow-Through Adapter for Round Valves Discharge Blow-Through Adapter for Round Valves Discharge Finger Guard for Round Valves Discharge Finger Guard for Round Valves Inlet Shear Protector: Half-moon Style for Round Valves Inlet Shear Protector: Half-moon Style for Round Valves Inlet Shear Protector: Spool Style for Round Valves Inlet Shear Protector: Spool Style for Round Valves Inlet Shear Protector: Spool Style for Round Valves, Vented Inlet Shear Protector: Spool Style for Round Valves, Vented Inlet Shunt with Tip Cleaner for Round Valves Inlet Shunt with Tip Cleaner for Round Valves Maintenance Slide Gate for Round Valves (Air Operated) Maintenance Slide Gate for Round Valves (Air Operated) Maintenance Slide Gate for Round Valves (Manually Operated) Maintenance Slide Gate for Round Valves (Manually Operated) Vent Box for Round Valves Vent Box for Round Valves
