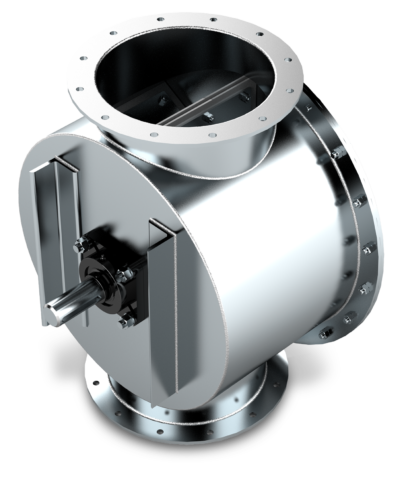

FT Series
Rotary Valve for Feeding and Metering ApplicationsFeatures & Benefits:
- Available in 9 heights, from 13" to 61 1/2"; and 10 flange diameters from 4" to 30".
- Rotor with flex-tip wiper vanes produces static pressures up to 18" WG.
- EPDM synthetic wiper vanes resist material abrasion; extend maintenance cycles.
- Industrial-duty housing constructed of mild steel; housing sideplate removes for easy access.
- Direct-drive, right-angle gearmotor provides reliable operation.
- Excellent performance in applications up to 200°F.
Options:
- Square flange design: Available in 9 flange sizes from 4" to 30".
- 304 or 316 stainless steel housing construction.
- Wiper types: polyurethane or EPDM; standard or extended tip; dual-rotor wiper blades.
- High-temperature performance, up to 500°F.
- Custom motor types and configurations.
Rotary Valve Capacity (Cubic Feet/Revolution) | ||
![]() |
4 | .10 |
6 | .23 | |
8 | .64 | |
10 | 1.34 | |
12 | 2.46 | |
14 | 6.2 | |
16 | 6.2 | |
20 | 12.6 | |
24 | 21.0 | |
30 | 42.4 |
