Features & Benefits:

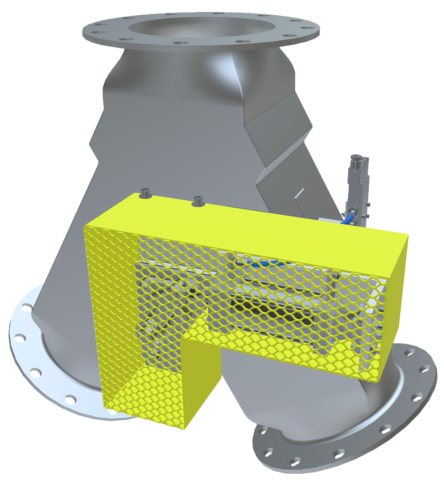

  • 2-way, Y-style, gravity diverter valve provides automated control of bulk material flow direction; improves efficiency of material feeding and loading operations.
  • Available in 4 heights, from 16 5/16"H to 24"H, and 4 square-flange sizes from 6" to 12".
  • Available in 30-degree or 45-degree outlet angles.
  • 10 ga. carbon steel housing construction; heavy-duty carbon steel flappers with neoprene seal strips and carbon steel seats.
  • Air control package includes solenoid, fittings, and tubing; pre-assembled and ready for start-up.
  • Excellent performance in high-temperature applications up to 500°F.

Options:

  • Round flange design: available in 4 heights, from 24 7/16"H to 31 7/16"H, and 4 flange diameters from 6" to 12".
  • Custom outlet angle construction, specific to application requirement.
  • Valve housing and flapper construction: 304 or 316 stainless steel, carbon steel, or aluminum.
  • Abrasion-resistant steel flappers.
  • Manual actuator.
  • Dual, side-access panels for easy reach into internal housing areas; or single, removable back panel.
  • NEMA 4 timer; 115-50/60-1 electrical; power-on light; on/off switch; timer configuration to operate up to 6 valves.

Specifications

Inlet/Outlet Flange Sizes: 4 sizes from 6" to 12", or custom
Material of Construction: Carbon Steel, Stainless Steel
Pressure Differential: Up to 30" WG
High Temperature Range: 500°F
